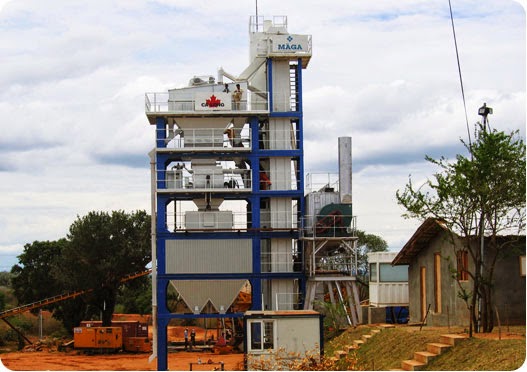

Compulsory asphalt batch mixing plant Ca-Long CL-1500 ( Capacity: 120t/h )
CL-1500 Asphalt Mixing Plant
(capacity 120t/h)
|
■ Transport by standard containers.
■ Small-type mixing plant, easy to
operate and convenient to maintain.
■ Similar structure fits to capacity from
50t/h, 80t/h, 100t/h, to 120t/h.
■ Vibrating screen has the structure of 2
decks 4 segments, which meets to screen
4 kinds of aggregates.
■ Hot mix storage silo is under the
mixer. Less space and less energy. Lower
fault rate.
|
|
Standard
Components: |
| 1. Cold aggregate feeding system |
|
| 1.1 Cold aggregate bin |
4pcs |
| 1.2 Collecting belt conveyor |
4sets |
| 1.3 Horizontal belt conveyor |
1set |
| 1.4 Primary screen |
1set |
| 1.5 Inclined belt conveyor |
1set |
| 1.6 System assistant functions |
1set |
| 2. Drying drum heating system |
|
| 2.1Drying drum |
1set |
| 2.2Main burner (diesel oil or gas or heavy oil) |
1set |
| 3. Main tower |
|
| 3.1 Hot elevator |
1set |
| 3.2 Filler elevator |
1set |
| 3.3 Vibrating screen |
1set |
| 3.4 Hot bin |
1set |
| 3.5 Weighing system (aggregate, bitumen, filler) |
1pc |
| 3.6 Mixer |
1pc |
| 4. Hot mix storage silo (downside, 60t) (option) |
1set |
| 5. Dust cleaning system |
|
| 5.1 Primary dust filter |
1set |
| 5.2 Second dust filter (Bag filter or water filter)
|
1set |
| 5.3 Pipeline system |
1set |
| 5.4 Induced fan |
1pc |
| 5.5 Chimney |
1pc |
| 6. Filler feeding system |
|
| 6.1 Filler silo (combined) |
1pc |
| 6.2 Impeller conveyor |
1pc |
| 6.3 Screw conveyor |
1pc |
| 7. Pneumatic system |
1set |
| 8. Control system |
|
| 8.1 Computer control system |
1set |
| 8.2 Monitoring system |
1set |
| 8.3 Power distribution cabinet, cables |
1set |
| 8.4 Control room (with air conditioner)
|
1pc |
| 9. Bitumen heating and storage system |
|
| 9.1 Bitumen tank (40m3) (option) |
2pcs |
| 9.2 Bitumen storage tank (10t) (underground) |
1pc |
| 9.3 Bitumen pump |
1pc |
| 9.4 Thermal conducting oil boiler |
1set |
| 9.5 Thermal conducting oil pump |
1pc |
| 9.6 Small burner |
1set |
9.7 Heavy oil heating system (option, extra money)
(it is provide for main burner with heavy oil only) |
1set |
| 10. Spare parts
|
1set |
Note: we could provide the products according
to users’ requests.
|
